CAPL Import

<< Click to Display Table of Contents >>

Navigation:  Working with CanEasy > Automation in CanEasy >

CAPL Import

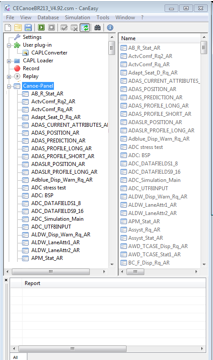

CAPL Basics



CAPL is a programming language developed by Vector Informatik



capl_picture1-1

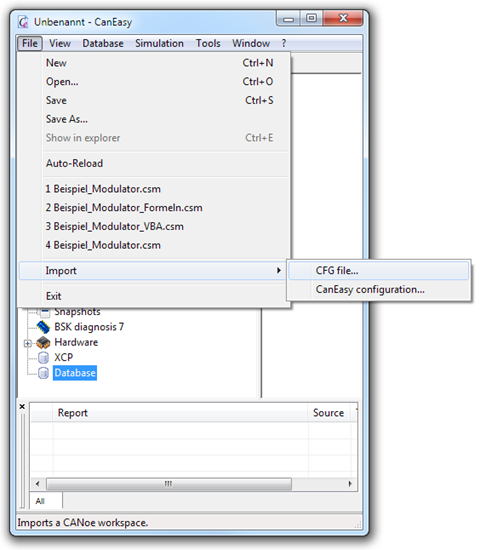

Import CFG file



•Select file -> Import -> CFG file from CanEasy's mail menu bar

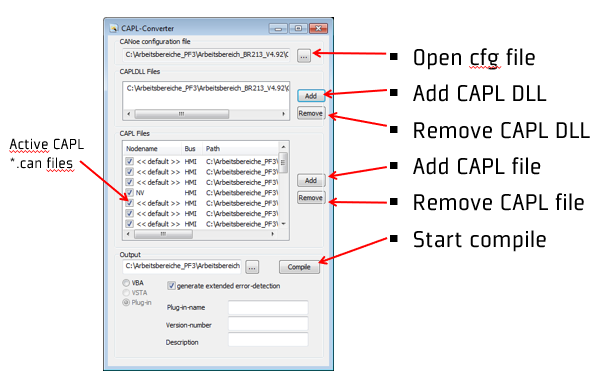

•Importing a CFG file CanEasy automatically imports the database files and opens the CAPL-Converter window



capl_picture2

capl_picture3

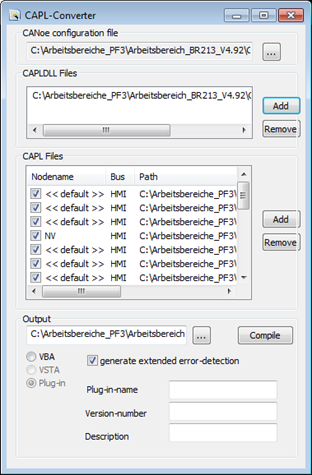

Add CAPL-DLLs



If there are CAPL DLLs used but not part of the CFG file you need to add them manually



capl_picture4

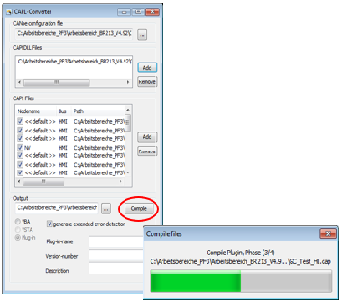

Compile files



capl_picture5



•Starting the compile process by clicking on “Compile“

•By default CanEasy compiles for every CAN file (node) a separate application.

•If a path is specified as output, all CAPL nodes are stored in this directory.

•If a single file is specified as the output, all nodes are compiled into one file.

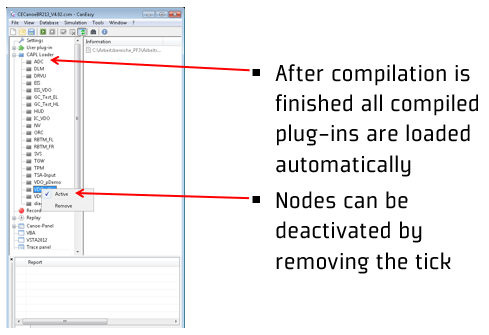

CAPL Nodes



capl_picture6

•After compiling, all converted nodes are added below MultiStudio (see Applications).

•Individual nodes can be deactivated via the context menu.

•CAPL tests (nodes with a MainTest function) can be started via the context menu. The report window shows at the end whether the test was successful or not. A test report in the form of an xml and html file is located in the workspace directory.

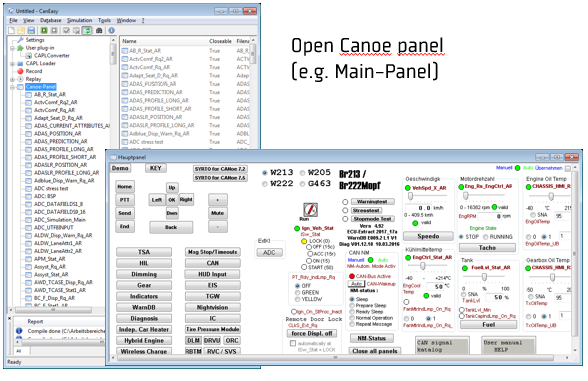

Open Canoe-Panel



capl_picture7



Save workspace



The workspace should be saved in the same directory as the CFG file so that relative paths can be correctly resolved by the CAPL nodes.



Working with CAPL



•Using CAPL you can't use the CanEasy panels

•To manipulate signal values you must use the imported Canoe Panels
